Ferrograte Electro-Forged Gratings is made of resistance-welding process to create a Rigid Finish to suite the corresponding Environment. The process of manufacturing is done where the Bearing Bars is Resistance-welded at the contact point with the cross bars under a combination of high heat and pressure which is fused together to form a permanent joint. The cross bars provide a high degree of rigidity, yet retain a smooth flat surface for comfortable walking.

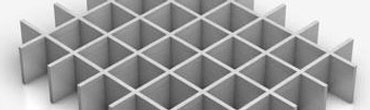

Press-locked steel bar gratings is a steel grate with a system of interlocking, perpendicular bars, these gratings are ideal floor platforms used for vehicle movements, Architectural applications such as (grilles, dividers and screens), Industrial Walkway access system, etc.
Heavy Duty Gratings commonly used on bridge-building, fire brigade driveways, Fuel Storage units etc., in-order to withstand Heavy loads. We offer Heavy-duty gratings with bearing bar height up to 120 x 10 mm for Heavy Load environment to withstand load upto 80 tons of (UDL) Uniformly distributed load and 11.5 Tons of concentrated load with a clear span of 1 Mtr Approximately.
Stair treads are designed for a simply supported condition when having a single concentrated imposed load of 1.5 KN spread over as area of 150mm x 150mm placed at the center of the edge of a tread.
Ferrograte manufactures and supplies the Grating Fixing Clamps in Mild Steel, Hot Dip Galvanised Finish - Suitable for Fixing Mild Steel Galvanised Gratings. It is the most common style of clip used for clamping down open steel flooring. It provides a quick and cost effective method of clamping.
Our Steel Ladders are Constructed as per European or American Standards. The ladder and cage can be supplied as per special client requirement or standard off the shelf ladder, fully welded or bolted to enable self-assembly on site.
FERROGRATE, an ideal product to change the danger zone safest for everyone. Ferrograte offers wide range of Manhole covers with frames, Channel gratings, Kerb Gullies, Gully Gratings, Step Irons, Tree Grates etc. Manufactured from Grey Iron (GG20, GG25) and Ductile Iron (GG50) material Grades and as per BS EN 124 and covers all application sectors.
