Welded Type Handrails
Welded Type Handrails are fabricated as per client drawings, Vertical Handrail Posts, Horizontal Top and Mid Rails, Toe or Kick Plates all are welded together before Painting or Galvanising. Our fully fabricated Handrail systems are used in Walkways, Stair cases and storage tanks.
Modular Type Handrails
our handrail stanchions are upright vertical posts that can be supplied in various diameters, designed to withstand various loads. Available in Tubular or Solid Bar Construction

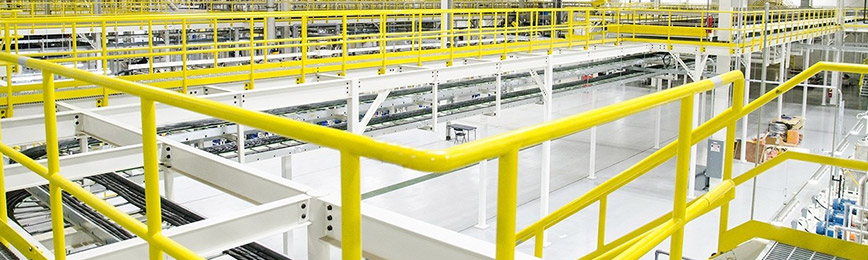

FRP / GRP Handrails
The handrail system components are manufactured with the pultrusion process (raw materials pulled through a resin bath and pre forming die) and contain up to 70% fiberglass which guarantees remarkable mechanical properties.
The internal composition of continuous directional glass fibers, determines an exceptional resistance to impact and fatigue (permanent deformations do not occur in case of accidental over load).
Lightweight and very easy to install, the railing systems are particularly well-suited to corrosive environments like those found in industrial, chemical and wastewater treatment plants as well as commercial structures with urban and salt air corrosion.
FRP handrails are available in:
- Round Type Handrails
- Square Type Handrails
- Corrosion resistance
- Slip resistance
- Lightweight yet durable
- Fire retardant
- Low maintenance
- UV Protection
- Easily fabricated
- Quick and easy to install
- Electrically and thermally non-conductive
- Electronically transparent
- Chemical plants
- Oil & gas
- Textile industry
- Electrical substations
- Pulp & paper
- Waste treatment
- Mass transit
- Water treatment
Download Load Tables
Complies to EN 14122-3 normative
When the height of a possible fall exceeds 500 mm, a guardrail must be installed. The minimum height of the guardrail shall be 1100 mm from the flooring.
The guardrail shall include at least one intermediate knee rail.
The clear opening between horizontal elements shall not exceed 500 mm.
A toe-plate shall be placed 10 mm maximum from the walking level.
The distance between the axes of the vertical posts shall be limited to 1500 mm maximum
