FRP Cable Trays in Dubai, UAE

FRP Cable Trays

Ferrotech FRP Cable Tray system are Manufactured from Glass Armoured thermoset fire retardant resins. Available in different range, applied for ideal locations where the Metallic systems get easily corroded. Our FRP Cable tray system meet Stringent Fire Retardant requirements & includes advantages as Anti Corrosion, High Strength, No Earthing, UV Resistant, Good Electrical Insulation, Low ThermalConductivity, etc.,

Resin Types Availability

Resin Type Resin Base Description Flame Spread Rating ASTM E84
Type IFR Isopthalic Polyester Industrial Grade Corrosion resistance & fire retardant Class 1, 25 or less
Type I Isopthalic Polyester Industrial Grade Corrosion resistance in acidic environment Non fire retardant
Type V Vinyl Ester Superior Corrosion resistance & fire retardant Class 1, 25 or less
Standards
- IS 6746 -1994 Specs for Unsaturated Polyester Resin System
- NEMA FG-1 1984-1993 for Low Pressure Fiber Reinforced Plastics Specification for Fiberglass Tray System
- Loading Characteristics IS 6746 Appendix K/UL 94 Flame Retardant (Low Flammability/v0)

Types Available
Ferrotech FRP Cable Tray Systems are available in Perforated Type Cable Tray System and Ladder Type Cable Tray System.

FRP Perforated Type Cable Tray SystemFRP Perforated Type Cable Tray System

Width(mm) : 50 / 75 / 100 / 150 / 225 / 300 / 450 / 600
Height(mm) : 25 / 30/ 50/ 100
Thickness(mm) : 2 mm To 4 mm
Length(mm) : 3000
Resin Type : Polyester / Vinyl Ester

FRP Ladder Type Cable Tray SystemFRP Ladder Type Cable Tray System

Width(mm) : 150 / 300 / 450 / 500 / 750 / 900
Height(mm) : 50/ 75/ 100/ 150 / 200
Thickness(mm) : 2 mm To 4 mm
Length(mm) : 3000
Resin Type : Polyester / Vinyl Ester

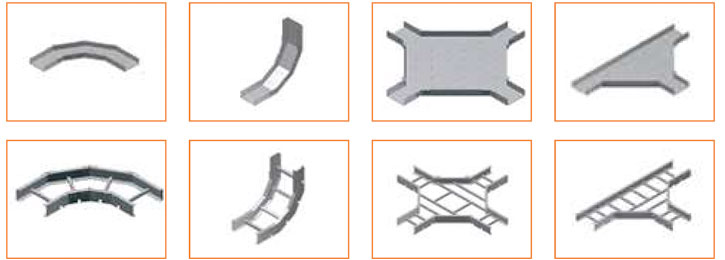

FRP Cable Tray Fittings
Ferrotech FRP Cable Tray System are supplied with fittings like bends, tees, cross, reducers, etc. to ease and to meet the Project Requirements. Sizes will be in line to the supplied Straight Runs. Some of Fittings are listed below.


Accessories & Hardware's
Ferrotech FRP Cable Tray System is supplied with complete range of Accessories which includes FRP Standard Couplers, Expansion Couplers, FRP Angle Plates, FRP Adjustable Splice Plates, FRP Hold Down Clip, FRP/SS Hold Down Clamp, FRP Cover Clamps, TrefoilClamp, Cable Ties, Blind Plates, Divider Strips, SS Fish plate and suitable Hardware's.
